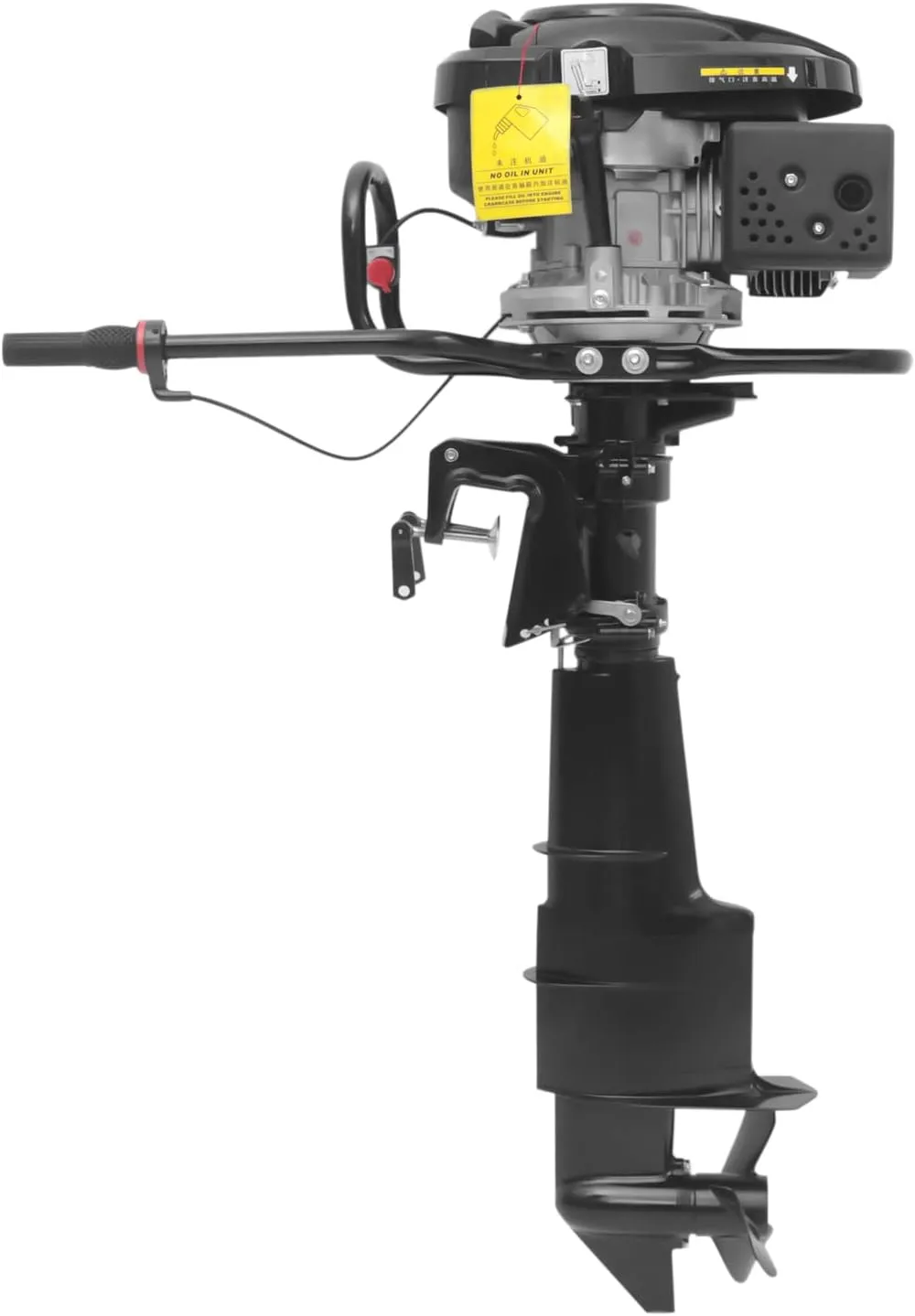

- ⛵【Outstanding Performance】With a displacement of 196cc and a speed of 3600r/min, this outboard engine is able to provide strong power. The fuel tank of this outboard engine has a capacity of 1.8 liters, which enables it to work continuously for more than an hour.
- 🌊【High Efficiency】This outboard engine adopts a high-precision intake and exhaust system to improve fuel conversion rate. The outboard engine is four-stroke, which saves about 30% more fuel than a two-stroke.
- ⛵【Easy to Operate】This outboard engine features a step-less variable speed mode, with forward, neutral, and reverse gear settings, which can be adapted to different work requirements. Its 180-degree steering function allows you easily control the steering boat.
- 🌊【Thoughtful Designs】The outboard engine adopts an excellent air cooling system, which can dissipate heat in time. Timely heat dissipation can extend its service life. This outboard engine is made of steel and aluminum, which has strong corrosion resistance, suitable for water operation.
- 🌞【Wide Applications】The outboard engine is suitable for all kinds of small boats of 8.8~26.2 meters, such as rubber boats, wooden boats, fishing boats, etc. It can be widely used in water sports, water tourism, fishery production, and other fields.
How to Use
1. Add enough gasoline and the right amount of engine oil. The amount of oil is based on the scale mark.
2. Turn on the flameout switch and snap the black buckle of the emergency flameout cable on.
3. Close the damper (the damper is closed before cold air starts, and the damper is open before the hot engine starts)
4. Throttle handle adds a little throttle.
5. Pull the starter puller to turn on the engine.
6. Open the damper to the maximum, start the rear damper and keep it open the whole time. (number 1 is off, number 4 is on)
Specification
Material: Aluminum, Steel Pipe, Plastic
Speed: 8-15 km/h / 5-9.3 MPH
Fuel Tank Capacity: 1.8L/0.47gal
Displacement: 196cc
Rotational Speed: 3600r/min
Motor: Four-stroke
Power: 7.5hp
Product Size: 11838cm/46.4514.96in
Handle Length: 84cm/33.07in
Operating Rod Length: 80cm/31.51in
Package Size: 1285440.5cm/50.3921.2515.94in
Applicable Boat Length: 2.7-8m/8.85-26.24ft
Net Weight: 33kg/72.75lbs
Gross Weight: 34kg/74.95lbs
Package Included
1*Outboard Engine
1*Funnel
All Accessories for Installation
Notes
1. The driving speed is about 8~15km/h, and the driving distance is different depending on the type of boat and the current condition of the load.
2. The four-stroke fuel is 92#, and the engine oil is added to the internal tank separately.
3. The outboard engine was factory tested for one hour before leaving the factory. It is normal to have a bit of wear and tear.
