- Electrostatic Discharge Control: This static remover extends the electrostatic discharge time and reduces instantaneous discharge energy, minimizing fire and explosion risks. Its anti-corro sion and explosion-proof design ensures safe operation in hazardous environments
- Fast Static Elimination: Simply touch the stainless steel ball for over 1 second to quickly neutralize body static electricity. The high-sensitivity sensor ensures immediate response, providing efficient static dissipation in various settings
- Wide Industrial Applications: Ideal for chemical plants, metallurgical facilities, refineries, and firework production sites. Also effective in computer rooms, hotels, and office buildings where static control is necessary
- Hazardous Environment Use: Specifically designed for oil depots, railway fuel stations, farm entrances, and pump rooms. Ensures safe static discharge at gas station unloading points, self-service pumps, and automated fuel dispensers
- Robust Stainless Steel Construction: Crafted from premium stainless steel, the static remover offers exceptional strength and longevity. Its surface maintains functionality even with frequent use in demanding conditions
Spec:
Item Type: Body Electrostatic Discharge Ball
Material: 304 Stainless Steel
Ball Diameter: Approx. 120mm / 4.72in
Ball Wall Thickness: Approx. 1.5mm / 0.06in
Pole Diameter: Approx. 51mm / 2.01in
Vertical Pole Wall Thickness: Approx. 1.5mm / 0.06in
Chassis Wall Thickness: Approx. 3.5mm / 0.14in
Chassis Diameter: Approx. 145mm / 5.71in
Overall Height: Approx. 280mm / 11.02in
Length of Grounding Wire: Approx. 3 meters / 9.8ft
Directly placed on the ground, the grounding wire is connected to the grounding grid or pile. If the installation site is not equipped with a grounding grid or grounding pile, a galvanized grounding rod with a depth of greater than or equal to 30CM can be driven into the ground, and then the grounding wire can be connected to the galvanized grounding rod. The grounding resistance should be less than 100 Ω
How to Use:
Equipment Maintenance:
1. Keep the equipment clean and regularly clean the dust and oil on the touch ball to prevent affecting the static electricity removal effect of the human body electrostatic discharge device.
2. Regularly inspect and maintain the human electrostatic discharge device, and check whether the grounding bolts and other accessories of the grounding wire are loose to avoid poor grounding.
packing list:

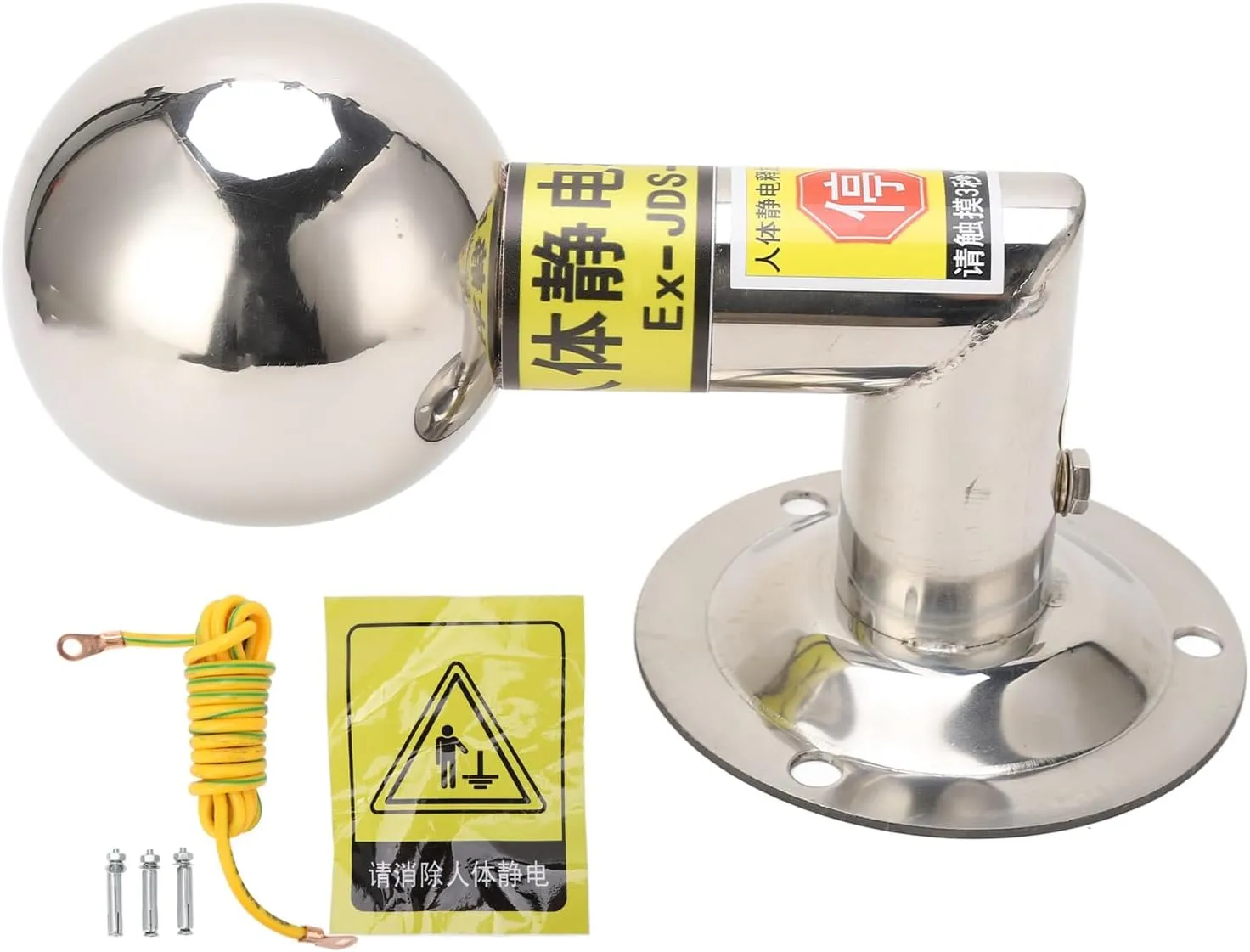

1 x Body Electrostatic Discharge Ball
3 x Expansion Bolts
1 x Grounding Wire
1 x Static Discharge Label Sticker
Notice:
Please ensure that the human electrostatic discharge device (anti human electrostatic device) is grounded reliably and regularly inspected;
- Package Dimensions : 11.42 x 11.02 x 7.09 inches; 3.06 Pounds
- Date First Available : June 3, 2025
- Manufacturer : Yosoo Health Gear
- Country of Origin : China
