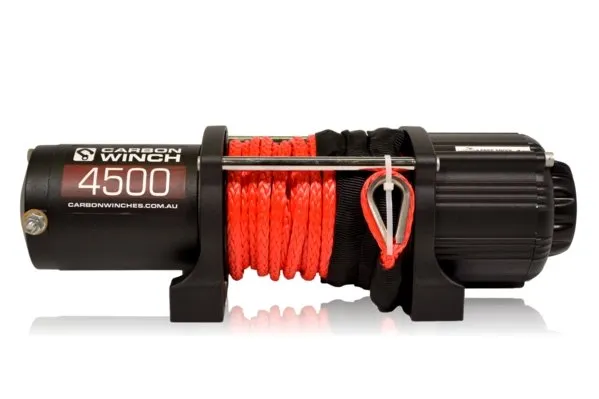

Carbon Offroad 4,500 lb ATV/UTV Winch – Compact, Powerful, and Versatile
Upgrade your off-road adventures and heavy-duty tasks with the Carbon Offroad 4,500 lb Capacity Winch, designed for ATVs, UTVs, side-by-sides, car trailers, and equipment transport.
Enhanced Design & Performance
Since September 2021, this winch has been redesigned for superior durability and ease of use, featuring:
- Improved clutch handle operation for smoother control
- Enhanced sealing for wet and rugged conditions
- Upgraded components & finish for long-lasting performance—all at the same great price
Compact & Easy to Mount
- Integrated mounting plate for quick and simple installation
- Compatible with trailers, ATVs, and buggies
- Easily secures to an existing pedestal or designated winch mount
Wireless Control for Maximum Convenience
- Includes free wireless remote control for effortless operation
- Also features a handlebar mini-rocker switch for direct control from your ATV
Versatile Applications
Ideal for a wide range of uses, including:
- Small car and equipment trailers
- Loading heavy equipment into vans
- Retrieving stuck ATVs, UTVs, or buggies
- Pulling boats (tinnies) onto trailers
- Opening cattle gates on livestock trucks
Key Features:
- 4,500 lb (2,040 kg) line pull for strong and reliable performance
- Power in & out operation with load-holding and dynamic braking
- Sealed permanent magnet motor for high efficiency with low amp draw
- Full metal 3-stage planetary gear train for greater pulling force and durability
- Synthetic rope for lightweight, high-strength, and safer winching
- Aluminium Hawse fairlead to reduce friction and extend rope life
Specifications:
- Model: CW-45
- Rated Line Pull: 4,500 lbs (2,040 kg)
- Motor: 12V DC, 1.9HP
- Remote Control: Handlebar Mini-Rocker & Wireless Remote (included)
- Geartrain: 3-Stage Planetary, 176:1 ratio
- Brake: Dynamic & Mechanical
- Synthetic Rope: 43’ (13m) x 1/4” (6.35mm)
- Mounting Bolt Pattern: 3.0” x 6.59” (76mm x 167mm)
- Winch Dimensions: 14.9” x 4.7” x 4.5” (379mm x 120mm x 115mm)
- Shipping Weight: 12.2 kg
This rugged, compact, and high-performance winch is a must-have for anyone looking to tackle tough terrains or simplify heavy lifting.
Get yours today and make every job easier!
12V DC PERFORMANCE SPECS (first layer of drum)
Line Pull Lbs.(Kgs.) | Line Speed FT./min(M/min.) | Motor Current | Pull by layer layer/Lbs(Kgs.) |
| 0 | 20.4(6.2) | 31 Amps | 1/4500(2040) |
| 1000 | 14.2(4.3) | 65Amps | 2/3750(1700) |
| 2000 | 10.9(3.3) | 96Amps | 3/3510(1595) |
| 3000 | 7.7(2.4) | 125Amps | 4/3300(1500) |
| 4500 | 4.9(1.5) | 175.Amps | |
