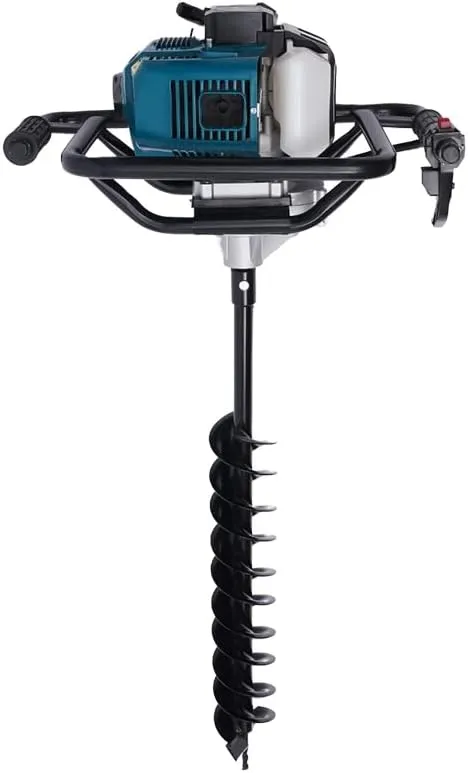

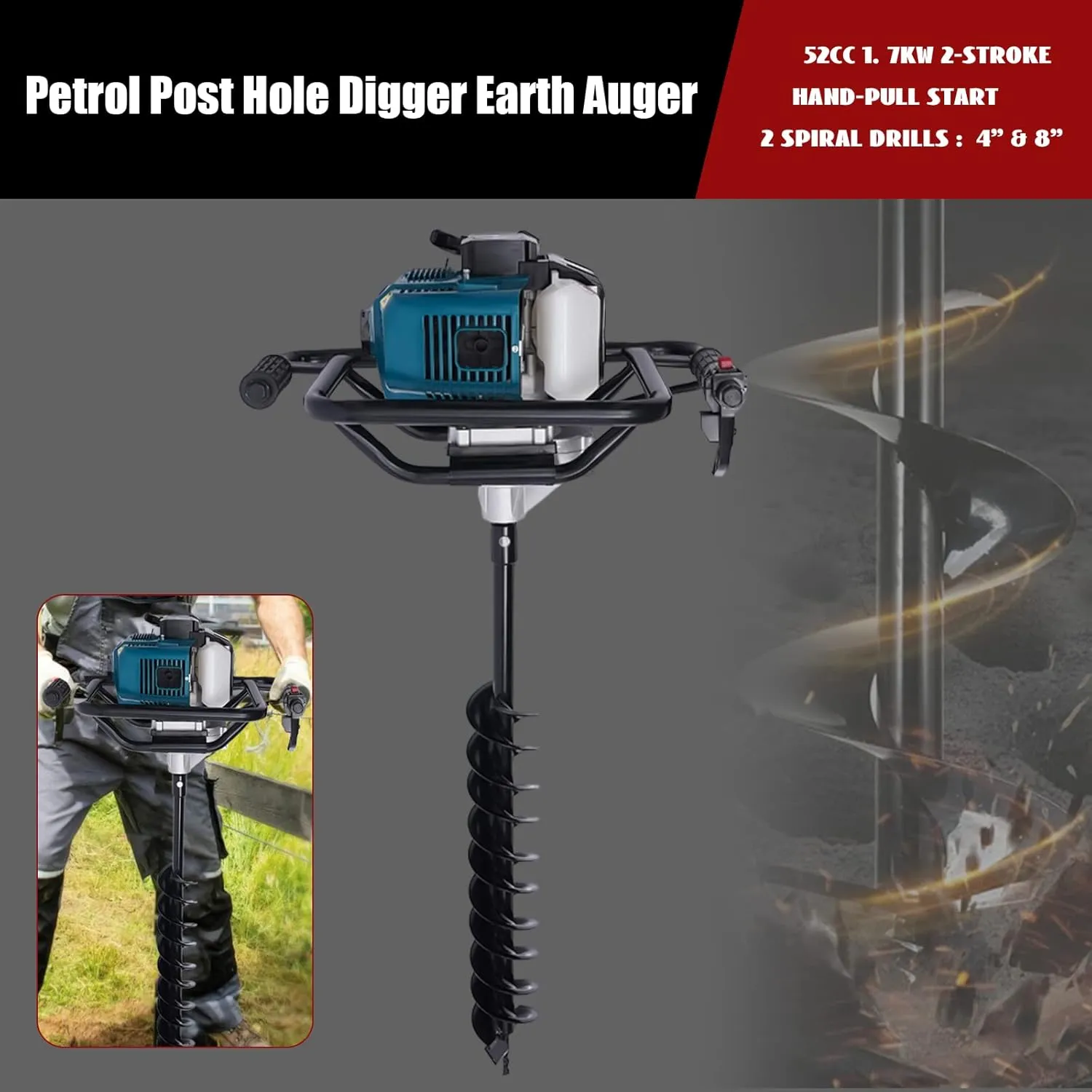

- Durable Materials: The gas auger post hole digger's aluminum alloy and PP housing and steel bits are extremely robust, hard-wearing and impact resistant, providing good digging performance. The hand frame also provides safety protection for the engine against damage
- Straight-through Transmission: Unlike the side-mounted engine models, the straight-through transmission of this post hole auger gas powered is more robust and less likely to shear the gears
- Easy to Operate: The hand-pull start and the integrated flame failure switch in the handle provide you with great convenience. The carburetor with pump of this fence post auger gas powered can fully burn gasoline when driving, avoiding waste
- High Efficiency: 2-stroke 1.7KW 2.3HP single-cylinder air-cooled engine with a speed of up to 8500rpm provides powerful power for heavy digging in challenging soil or terrain conditions
- Complete Accessories: Proportioning tank, funnel, goggles and installation tool kit are all included in the earth auger post hole digger's package, providing you with ease of installation and safety, so you don't need to buy extra
How to Start
1.Press the Oil Bubble: Before each start, you have to press the oil bubble to supply oil. And once you press and release, you can suck the oil into the oil pipe.
2.Close the Damper: Close the dampers in the cold machine state, the machine is easier to start.
3. Quickly pull the starter 5-8 times. If it fails to start, open the damper and pull it again.
Specifications
Post Hole Digger Material: Aluminum Alloy, PP
Drill Rod Material: Steel
Color: Blue, Black
Earth Auger Model: DZ52C
Engine Mode: 1E44F-5C
Power: 1.7kw(2.3HP)
Rotation Speed: 6500-8500r/min
Engine Type: Air-cooled, Two-stroke, Single Cylinder Gasoline
Engine Displacement: 52cc
Carburetor Type: Pump-film Type
Idle Speed: 2800-3200r/min
Fuel Tank Capacity: 1000ml/0.26gal
Gasoline/2-cycle Oil Mixing Ratio: 1:25
Operation Form: One-man
Machine Gross Weight: 11kg/24.25lbs
Machine Size: 50*35*35cm/19.69*13.78*13.78in
Packing Size: 47*36*33cm/18.5*14.17*12.99in(Machine); 82*22*32cm/32.28*8.66*12.59in(Drill Bits)
Extension Bar Length: 30.5cm/12in
Drill Bits Specification: 10cm/4in, 20cm/8in
Applicable Drill Diameter: 6cm/2.36in), 8cm/3.15in,10cm/3.94in,15cm/5.91in, 20cm/7.87in
Package Included
1* Earth Auger
1* Extension Bar
1* Fuel Mixing Bottle
1* Toolkit Bag
2* Drill Bits
1Pair* Goggles
1* Funnel
1* English User Manual
All tools for Assembly
