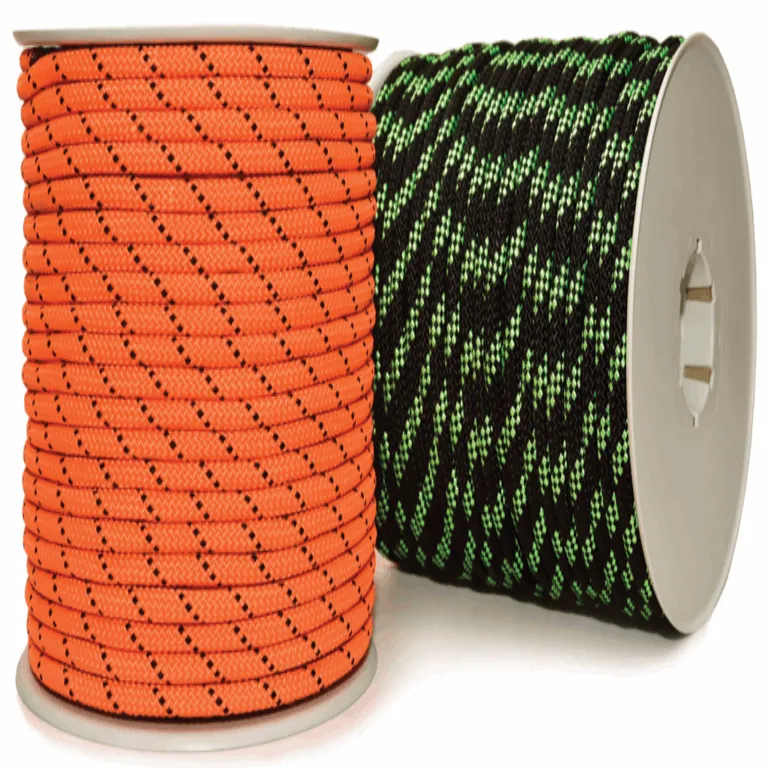

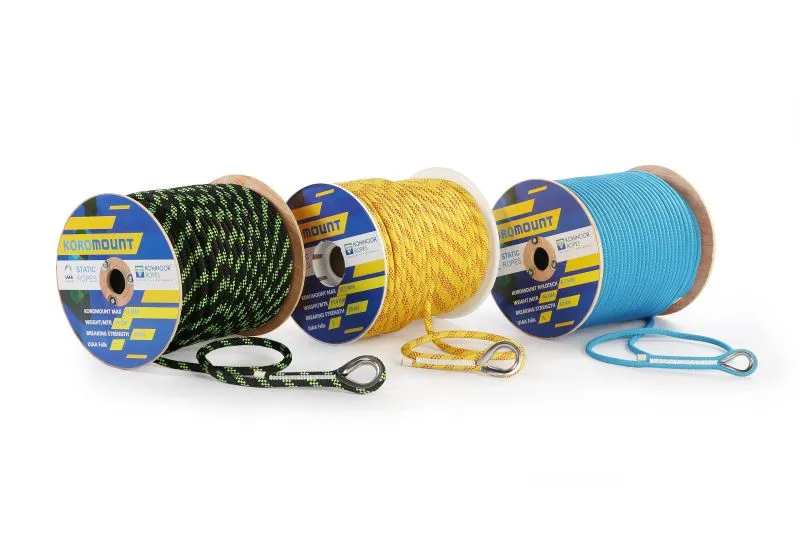

Its design makes this rope particularly well suited for use around sheaves. Furthermore, it provides above-average breaking forces in combination with various types of hardware. Perfectly adapted to the needs of the caver, giving excellent balance between abrasion resistance and flexibility.
Specification
| STANDARD EN1891:1998 |
| STANDARD—UIAA 107 |
| TYPE: STATIC ROPE |
| BRAID: 32 & 48 |
Product Specification
Technical Data Chart (Imperial)
| Diameter(MM) | 8.5 | 9 | 10 | 10.5 | 11 | 12 | 14 |
| Weight grams/meter | 48.5 | 58.5 | 72 | 79.8 | 82.5 | 97 | 136.5 |
| Breaking Load(KGF) | 2100 | 2500 | 2700 | 3000 | 3500 | 4200 | 4800 |
| Breaking Load with figure of eight knots (KGF) | 1200 | 1200 | 1500 | 1500 | 1700 | 1700 | 1700 |
| Sheath Slippage | 0mm | 0mm | 0mm | 0mm | 0mm | 0mm | 0mm |
| No of fall factors with 100 kg load | 6 | 7 | 7 | 8 | 8 | 7 | 8 |
| Elongation (50/150KG) | 4% | 2.40% | 3% | 2.80% | 3% | 3.50% | 2 |
Technical Data Chart (Metric)
| Diameter(MM) | 8.5 | 9 | 10 | 10.5 | 11 | 12 | 14 |
| Weight grams/meter | 48.5 | 58.5 | 72 | 79.8 | 82.5 | 97 | 136.5 |
| Breaking Load(LBS) | 4629.70 | 5511.55 | 5952.47 | 6613.86 | 7716.17 | 9259.40 | 10582.18 |
| Breaking Load with figure of eight knots (LBS) | 2645.54 | 2645.54 | 3306.93 | 3306.93 | 3747.85 | 3747.85 | 3747.85 |
| Sheath Slippage | 0mm | 0mm | 0mm | 0mm | 0mm | 0mm | 0mm |
| No of fall factors with 100 kg load | 6 | 7 | 7 | 8 | 8 | 7 | 8 |
| Elongation (50/150KG) | 4% | 2.40% | 3% | 2.80% | 3% | 3.50% | 2 |
Feature
- Polyester over nylon with a balanced
- Torque-free construction
- Excellent handling and knot-holding characteristics
- High abrasion resistance
- Excellent UV protection
- Low elongation
- Slight water absorption or wet shrinkage
- Good visibility
Note
Price: Available Price is Per Metre.
