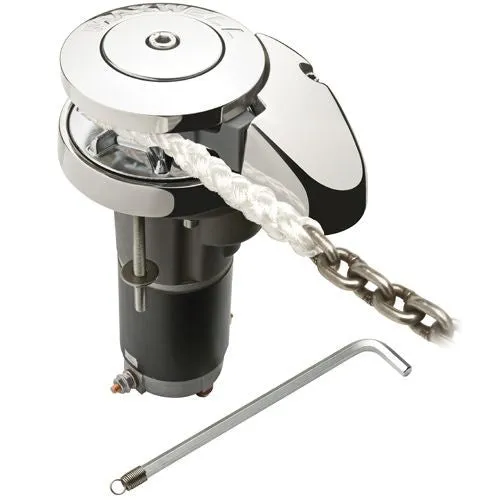

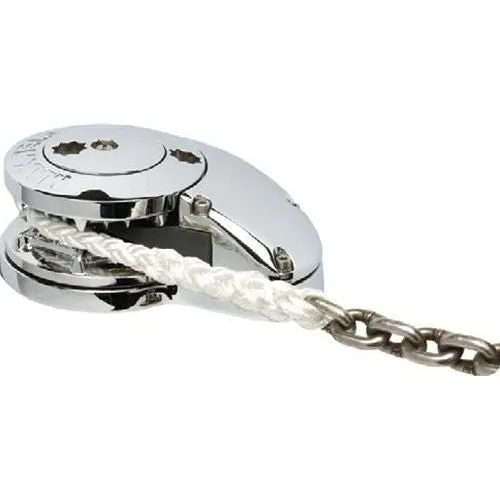

The Maxwell RC series are low profile, vertical winches which features a solid 316 grade stainless steal build.
The RC winches use a chromed bronze chainwheel, designed to effortlessly retrieve 6 and 10mm chain spliced to 12 to 16mm line. The two piece installation saves time, and can be retrofitted without disassembly of windlass. A unique spacer tube lets the RC series fit through virtually any deck thickness, and the multiple mounting positions and self aligning gearbox ensure that the optimal mounting position can be attained.
Full disassembly of the topworks is capable of using only the handle provided and an Allen key.
The RC series works with all chain rodes for those who desire a low-profile, elegant windlass on their foredeck.
The cone type clutch/break permits manual free-fall.
Specifications - RC6 & RC8
| Model | RC6 | RC8 6mm | RC8 8mm |
| Maximum Pull | 350kg | 350kg | 600kg |
| Static Hold | 700kg | 1200 | 1200kg |
| Chain Short Link | 6-7mm | 6-7mm | 8mm |
| Rope Size | 12mm | 12mm | 14-16mm |
| Chain Speed | 24m/min | 28m/min | 32m/min |
| Rope Speed | 21m/min | 24m/min | 28m/min |
| Power Supply (DC) | 12 or 24V | 12 or 24V | 12 or 24V |
| Motor Power | 500W | 600w | 1000W |
| Net weight | 8.5kg | 12.5 | 16.5kg |

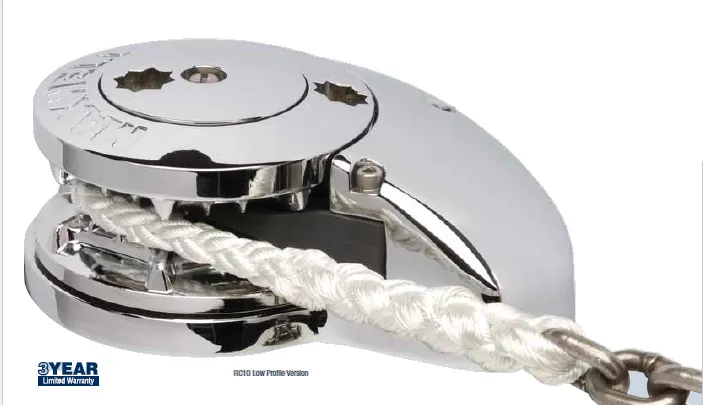

Specifications - RC10
| Model | RC10 8mm | RC10 10mm |
| Maximum Pull | 700kg | 850kg |
| Static Hold | 1500kg | 1500kg |
| Chain Short Link | 8mm | 10mm |
| Rope Size | 14mm-16mm | 16mm |
| Chain Speed | 24m/min | 24m/min |
| Rope Speed | 20m/min | 20m/min |
| Power Supply (DC) | 12 or 24V | 12 or 24V |
| Motor Power | 1000W | 1200W |
| Net weight | 19kg | 20kg |
Important: Maxwell windlasses must be used in conjunction with a chain stopper or snubbing device to take the load off the windlass while laying at anchor. The chain stopper and alternative snubbing system should also be used to secure the anchor in the fully raised position while under way.
Package Includes
- Windlass topworks,
- Gearbox,
- Dual direction solenoid.
